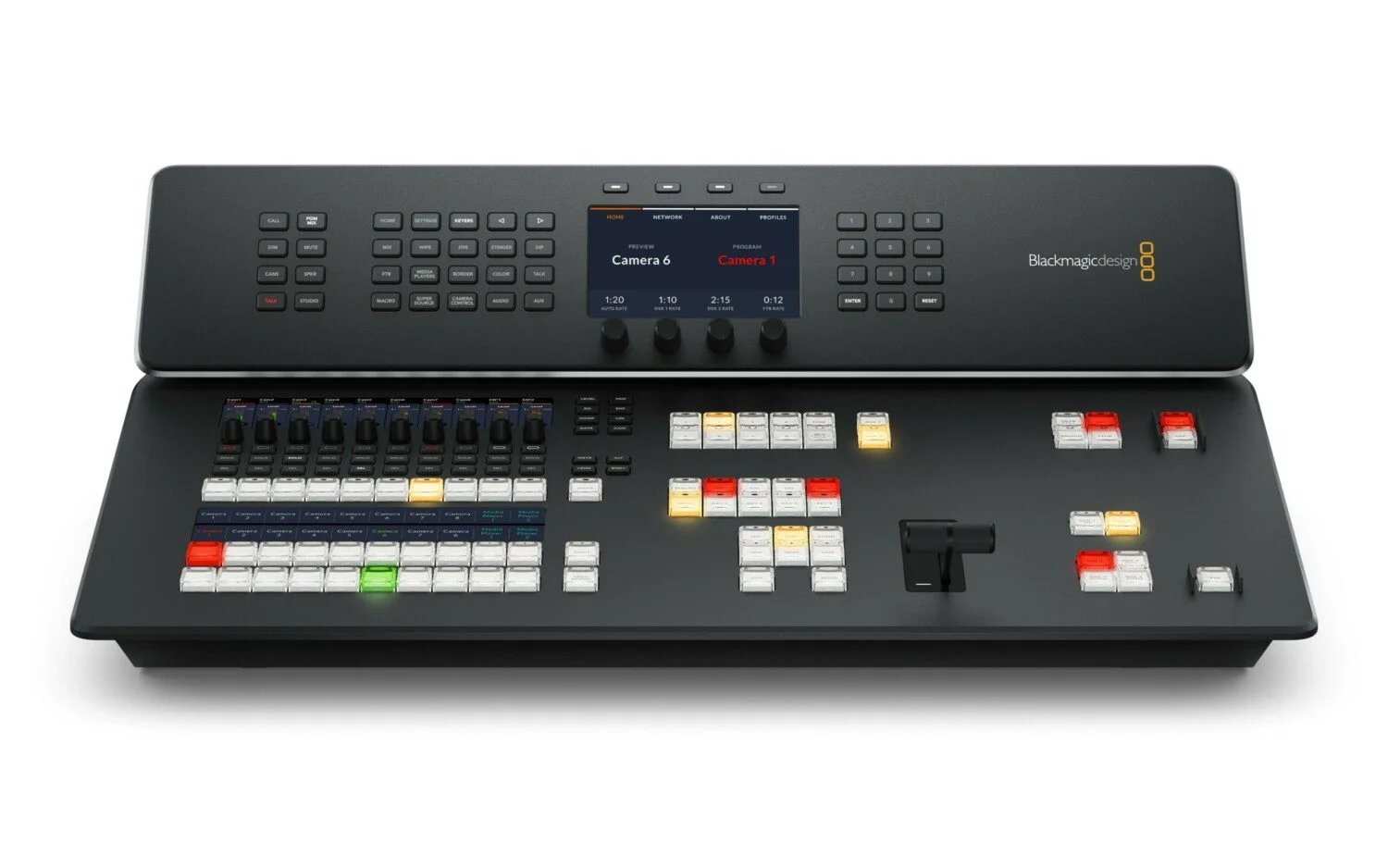

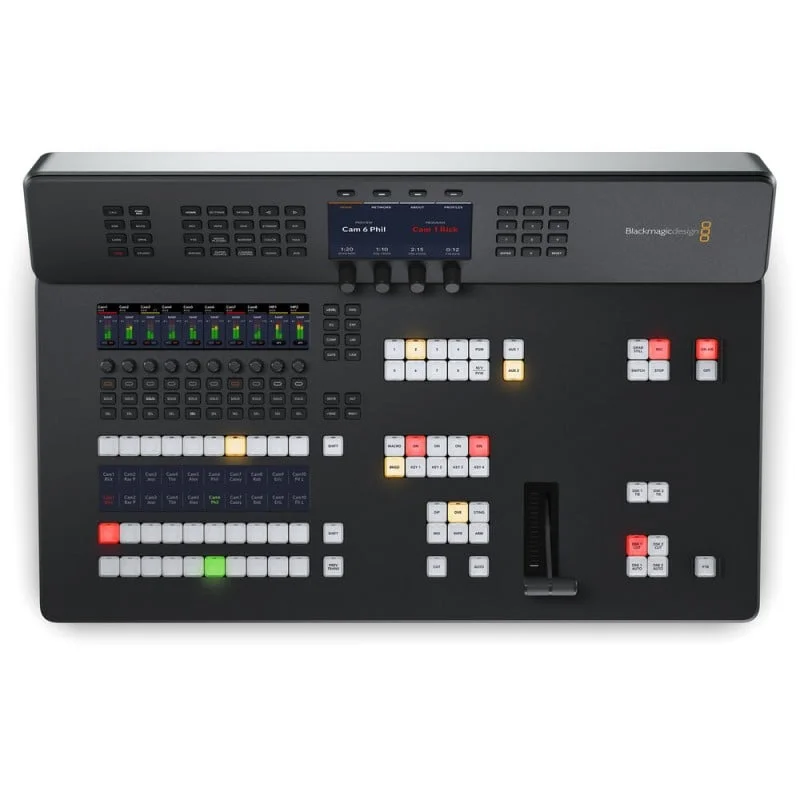

The ATEM Television Studio HD8 ISO includes all the features of the ATEM Television Studio HD8, plus ISO recording of all 8 inputs to separate video files. It also supports up to 8 remote cameras via Ethernet locally or globally via the internet. The remote cameras also support tally and camera control.
Connections:
- 8 SDI video inputs
- 12 SDI video outputs
- 1 HDMI video output
- Total audio inputs: 2x XLR for balanced analog audio, 1x BNC for 32-channel MADI digital audio, 2x RCA for analog stereo audio, 1x 5-pin female XLR jack for talkback
- Total audio outputs: 4x 6.3 mm jack for analog audio, 1x BNC for MADI digital audio with 64 channels – up to 50 active, 1x 5-pin female XLR socket for talkback
- 2 Aux SDI outputs
- 1 SDI Program output
- Webcam Output: 2 USB-C ports supporting 720p or 1080p with PGM frame rates
- Tally Output: Added via Ethernet connection using Blackmagic Design's GPI and Tally interface (optional not included)
Features:
- 4 upstream keyers
- 2 downstream inlays
- 4 advanced chroma keyers
- 1 SuperSource
- 7 linear/luma keyers
- Transition Keyer: 1 Stinger, 1 DVE
- 8 levels in total
- 7 pattern generators
- 2 color generators
- Integrated control desk to control all mixer functions and settings
- 16 routable windows
- Source Window
- Tally: Red light indicates program, green light indicates preview
- Talkback Support
- n-1 assistance
